Data Factory > protocol-http-perform

TL;DR;

This task allows performing one HTTP call to a given web service.

Name:

Max execution time: 120 mins

TIP

The full documentation of the behavior of this task is detailed in the Learning Center.

Technical details

The property below are either partially or not available to date

• This is meant to be a reminder for the development/product team for the next steps to be done.

Property	Mandatory	Type and constraints	Description	Example	Available
body	Not mandatory	Object, see detail below	The body of the request	{"type": "JSON", "json": {"foo": "bar"}}	🟠 Partially available
body.type	Not mandatory, Default: JSON	Enum - PLAIN, JSON, YML, XML, MULTIPART_FORM, FORM_URL_ENCODED, GRAPHQL, BINARY_FILE	The type of the body See details below for each type	JSON	🟠 To date only JSON and MULTIPART_FORM are available
body.use	Not mandatory Default: NONE	Enum - NONE, JSON, STRING, FILE, FORM	Defines the value used for the body of the request If use = JSON, the property body.json is used and must be defined. If use = STRING, the property body.string is used and must be defined. If use = FILE, the property body.file is used and must be defined. In this case, the content of the file is read and used as the body of the request. If use = FORM, the property body.form is used and must be defined. If use = NONE, no value is used for the body of the request.	JSON	🔴 Not vailable to date
body.string	Not mandatory	String Max length is 100 000 characters	The body of the request in String format	foo	🔴 Not vailable to date
body.file	Not mandatory	Object File	The body of the request in File format	{"url": "https://api.product-live.com/v1/i"}	🔴 Not vailable to date
authentication	Not mandatory	Object	The authentication of the request	{"useAuthentication": true, "scheme": "BASIC", "login": "foo", "password": "bar"}	🔴 Not vailable to date
authentication.useAuthentication	Not mandatory Default: true	Boolean	true: use authentication, false: do not use authentication	true	🔴 Not vailable to date
authentication.type	Mandatory if useAuthentication = true	Enum - BASIC, BEARER, API_KEY, AWS_IAM_V4	The authentication scheme	BASIC	🔴 Not vailable to date
authentication.bearerValue	Mandatory if authenticationScheme = BEARER	String	The bearer token	eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9	🔴 Not vailable to date
authentication.bearerPrefix	Not mandatory Only if authenticationScheme = BEARER - Default: Bearer	String	The prefix of the bearer token	Bearer	🔴 Not vailable to date
authentication.login	Not mandatory Mandatory if authenticationScheme = BASIC	String	Login	foo	🔴 Not vailable to date
authentication.password	Not mandatory Mandatory if authenticationScheme = BASIC	String	Password	bar	🔴 Not vailable to date
authentication.useISO88591	Not mandatory Only if authenticationScheme = BASIC - Default: false	Boolean	true: use ISO-8859-1 encoding instead of default UTF-8 encoding, false: use default UTF-8 encoding	true	🔴 Not vailable to date
authentication.apiKeyValue	Mandatory if authenticationScheme = API_KEY	String	The key of the API key	eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9	🔴 Not vailable to date
authentication.apiKeyName	Mandatory if authenticationScheme = API_KEY	String	The name of the API key (the name of the header or the query parameter)	X-API-KEY	🔴 Not vailable to date
authentication.apiKeyAddTo	Not mandatory Only if authenticationScheme = API_KEY	Enum - HEADER, QUERY, COOKIE	The location of the API key (the header, the query parameter or the cookie)	HEADER	🔴 Not vailable to date
authentication.awsIamV4AccessKeyId	Mandatory if authenticationScheme = AWS_IAM_V4	String	The access key id	eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9	🔴 Not vailable to date
authentication.awsIamV4SecretAccessKey	Mandatory if authenticationScheme = AWS_IAM_V4	String	The secret access key	eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9	🔴 Not vailable to date
authentication.awsIamV4Region	Mandatory if authenticationScheme = AWS_IAM_V4	String	The region	eu-west-1	🔴 Not vailable to date
authentication.awsIamV4ServiceName	Mandatory if authenticationScheme = AWS_IAM_V4	String	The service name	execute-api	🔴 Not vailable to date
delayMilliseconds	Not mandatory Default: 0	Number Must be lower than 10e5	The delay in milliseconds before executing the request	150	🔴 Not vailable to date

Header X-User-Agent

The header X-User-Agent is automatically added to the request with the following value: Product-Live Data-Factory/3.0.0. This value may not be surcharged by the user.

Error handling

The task itself, like every other task, has a status code and can finish in a successful state or failure state. This should not be confused with the status sent by the distant service that is being queried. If the distant service responded, even with an http error code (404, 500 ...), the task will be considered sucessful. If the distant service cannot be reached, either because of a faulty domain, a timeout, or an input that does not fit the limitations the task will be considered a failure.

Authentication type

To date, only the PL authentication type is available. It's purpose is to automatically generate an API key to perform requests against the Product-Live API on behalf of the user who started the current job. This feature may be extended in the future to allow other types of authentication (such as BASIC, BEARER, API_KEY, AWS_IAM_V4, GCP_IAM, ...).

Techical limitations and Recommendation

Description	Limitation	Recommendation
Max execution time	120 mins	5 mins
Max number of requests per day	-	100 000

Appendices

What is an URL?

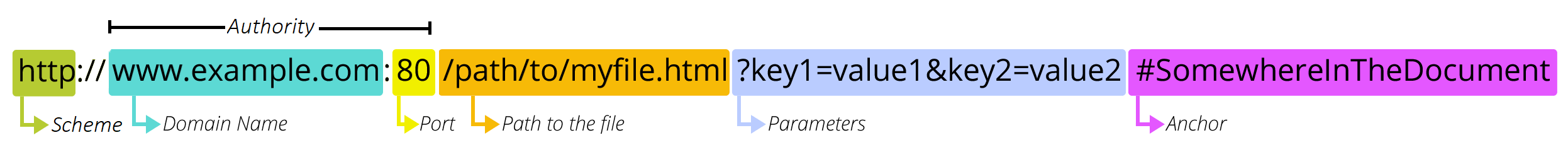

A URL is composed of different parts, some mandatory and others optional. The most important parts are highlighted on the URL below (details are provided in the following sections):

Source: developer.mozilla.org/en-US/docs/Learn/Common_questions/Web_mechanics/What_is_a_URL
